MDL Fanbeam® 4.2 & 5 – Laser Rangefinder Position Reference Systems (PRS)
MDL Fanbeam® 4.2 and Fanbeam® 5 are advanced laser-based Position Reference Systems (PRS) designed for Dynamic Positioning (DP) vessels operating in offshore environments. Using high-precision time-of-flight laser technology, these systems accurately determine a vessel’s position relative to fixed or mobile targets such as offshore rigs, platforms, and support vessels.
The system transmits real-time positional data to the DP system, enabling automatic thruster adjustments to maintain precise vessel positioning—even in challenging sea conditions.
Core Working Principle
The Fanbeam system emits invisible laser pulses toward specially designed reflectors installed on offshore structures. These pulses are reflected back to the sensor, allowing the system to calculate range and bearing with exceptional accuracy.
Key Benefits
- High-accuracy positioning for offshore DP operations
- Reliable alternative to GNSS in obstructed environments
- Seamless integration with DP systems and onboard sensors
- Enhanced safety and operational efficiency
- Suitable for wind farms, oil & gas platforms, and dive support vessels
Intelligent Control for DPOs
- User-Friendly Interface: Pre-configurable and intuitive software ensures quick setup and ease of use
- Automation & Alerts: Real-time alerts and performance indicators improve operational awareness
- Fast Response: Enables rapid adjustments to sensor parameters during dynamic offshore operations
Get in Touch
Looking for MDL Fanbeam PRS supply, installation, or service support?
Contact SMTS Marine Solutions LLC for expert assistance, genuine products, and reliable marine solutions tailored to your vessel requirements.

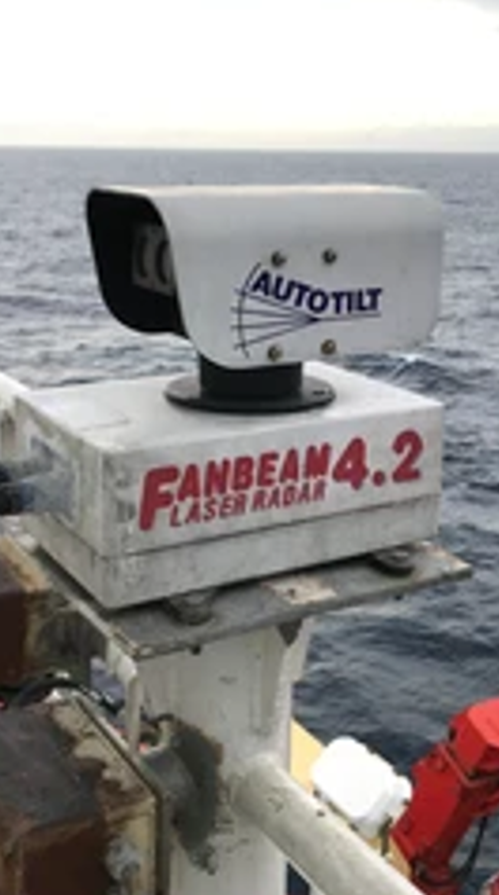

MDL Fanbeam® 4.2 and 5: Laser Rangefinders

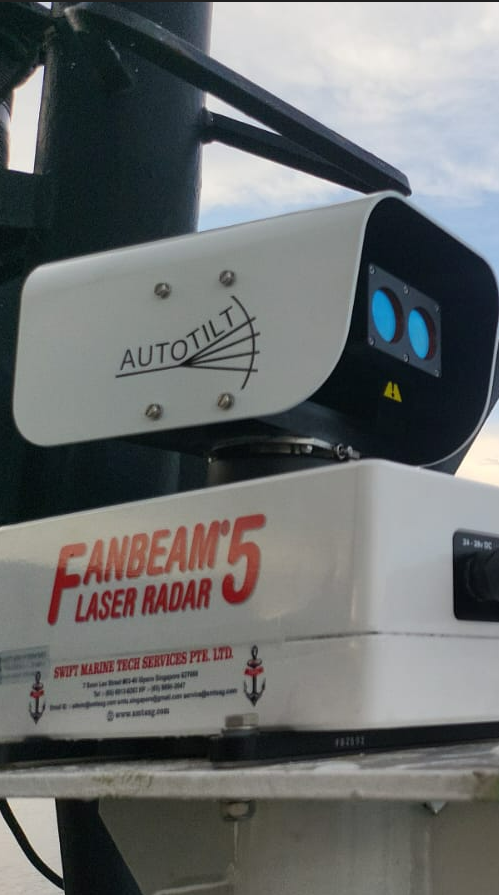

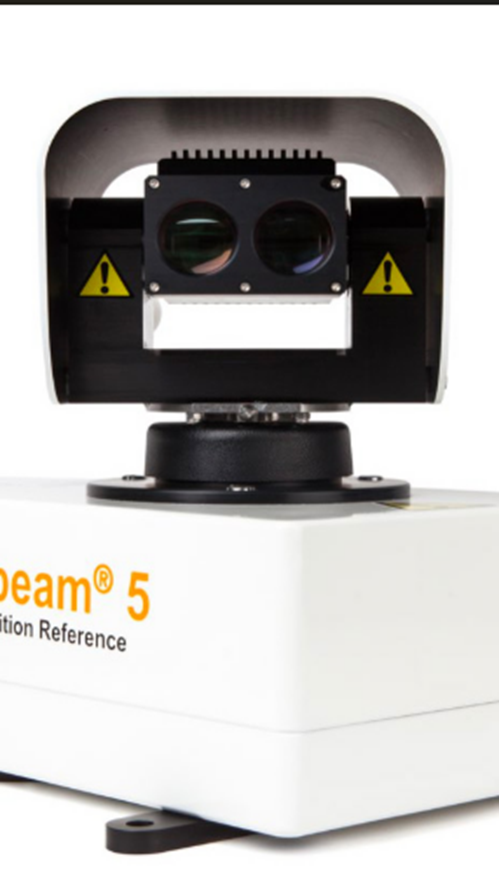

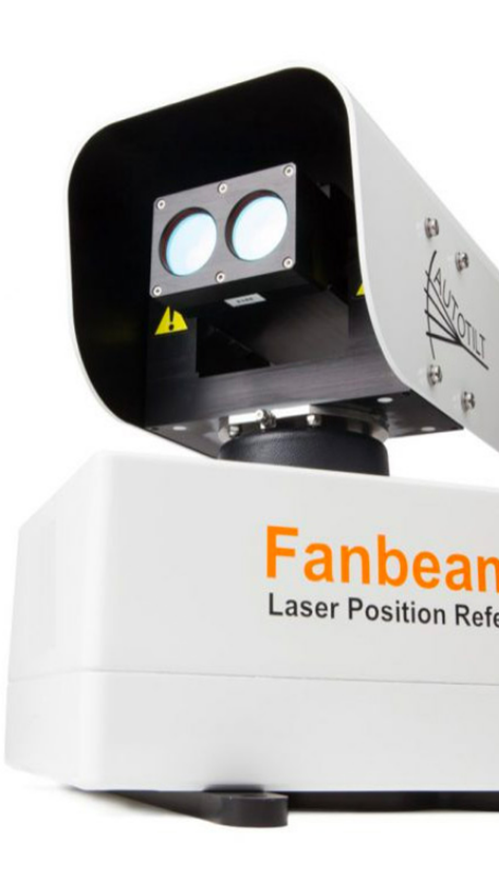

The Fanbeam 5 Position Reference System (PRS) leverages precise time-of-flight laser technology to accurately determine a vessel’s position relative to custom reflectors, which can be securely mounted on offshore rigs, installations, or other vessels. This data is then transmitted to the vessel’s dynamic positioning (DP) system, which controls the thrusters to maintain the vessel’s position during operations.
With the advanced design of the Fanbeam 5 laser unit, custom reflectors, and the Fanbeam Controller 4.0 software, Fanbeam has become the preferred laser-based PRS. Its wide range of data outputs and seamless integration with other sensors and DP systems make it ideal for holding a vessel in position or for executing precise movements.
