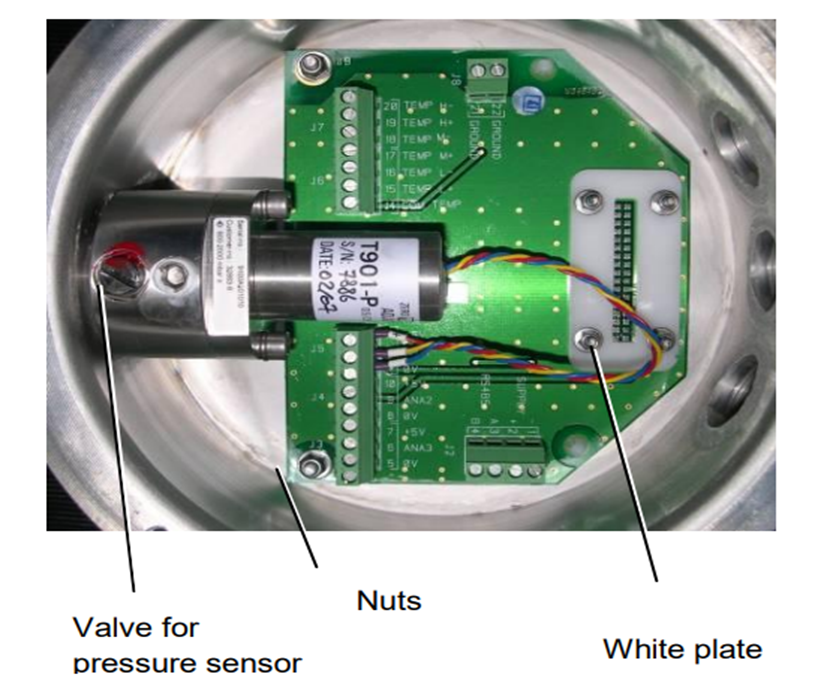

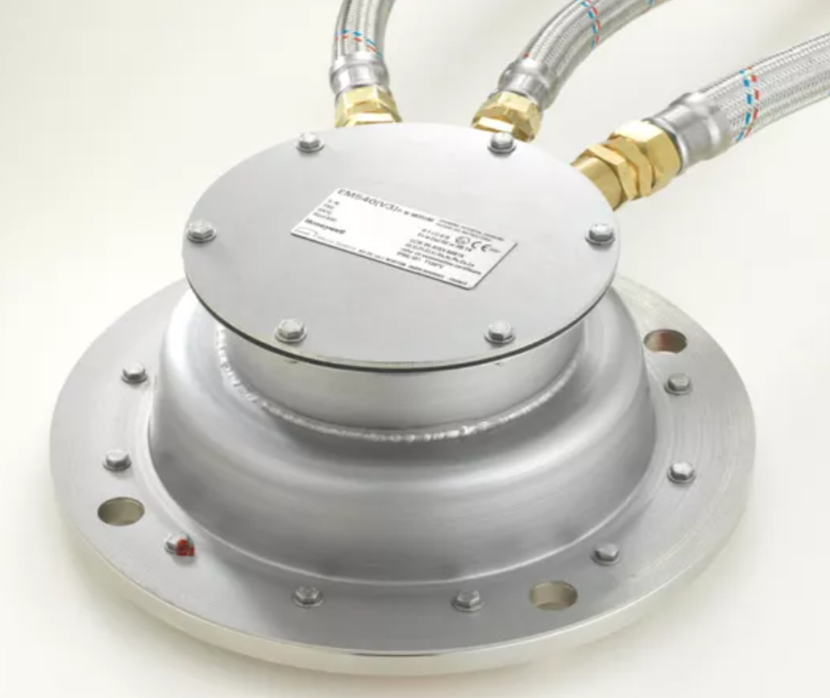

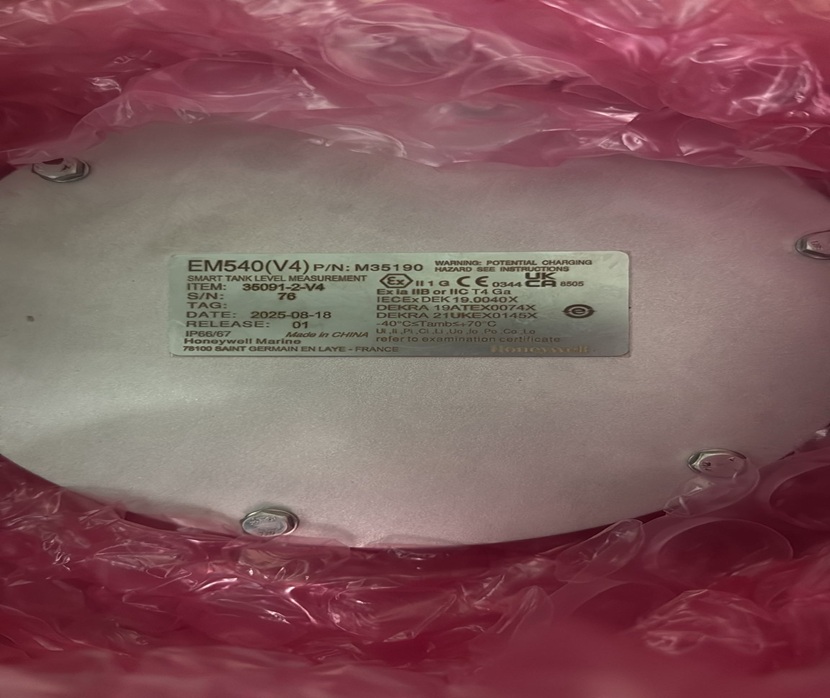

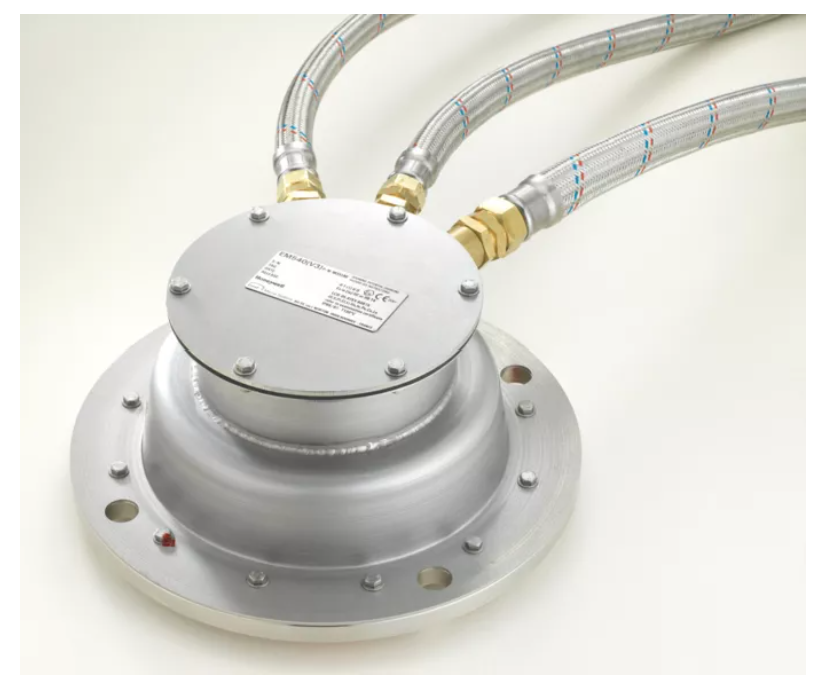

The Honeywell Enraf EM540 Radar Tank Level Gauge is a high-precision, non-contact radar-based tank measurement instrument designed for continuous cargo tank level and ullage measurement in marine applications. Using 10 GHz FMCW radar technology, the EM540 provides reliable measurement of liquid levels without requiring direct contact between the measuring device and the cargo.
The system is engineered for demanding tanker, offshore, FSO/FPSO and marine cargo-handling applications, where accurate tank level information is essential for cargo monitoring, loading, unloading and operational control.
SMTS Marine Solutions LLC provides technical support, inspection, troubleshooting, maintenance and service solutions for marine tank gauging equipment and cargo monitoring systems.
Precision Above the Tank: Honeywell EM540 Radar Delivers Smarter Marine Tank Gauging
10 GHz FMCW Radar Measurement Technology
The EM540 uses Frequency Modulated Continuous Wave (FMCW) radar technology to determine the distance between the radar antenna and the surface of the cargo.
The radar signal is transmitted toward the tank surface and the reflected signal is analysed electronically to calculate the liquid level. Because the measurement is non-contact, the instrument can provide continuous level information while reducing mechanical wear associated with traditional contacting measurement systems.
This makes the Honeywell Enraf EM540 suitable for demanding marine environments where reliable and repeatable tank measurement is required.
Key Features of Honeywell Enraf EM540
- 10 GHz FMCW Radar Technology – Provides reliable non-contact measurement of liquid level inside marine cargo tanks.
- High-Resolution Measurement – Offers measurement resolution down to 1 mm for precise tank level monitoring.
- Wide Measurement Range – Supports tank measurement applications with a range of approximately 600 mm to 42,000 mm.
- Non-Contact Level Measurement – Radar technology eliminates direct contact with the cargo during normal level measurement.
- 13° Radar Beam Angle – Designed for effective signal transmission and reception within suitable tank installations.
- Planar Antenna Design – Helps minimise product accumulation on the antenna surface.
- Antenna Fouling Detection – Provides diagnostic capability for identifying conditions that may affect radar performance.
- Automatic Radar Self-Test – Supports continuous monitoring of instrument operating condition.
- Two-Way Digital Communication – Enables measurement and diagnostic data exchange with compatible marine systems.
- 316L Stainless-Steel Housing – Provides robust construction for demanding marine environments.
- IP66/IP67 Protection – Protects the instrument against dust and water ingress when correctly installed.
- Integrated Diagnostics – Provides self-monitoring and diagnostic functions to support maintenance and troubleshootin
High-Accuracy Cargo Tank Level Measurement
Accurate cargo measurement is critical during ship loading, unloading, cargo transfer and tank management. The EM540 is designed to provide high-resolution level measurement, supporting operators in monitoring cargo quantities and tank conditions.
The instrument specification includes:
- Measurement range up to approximately 42 metres
- Resolution down to 1 mm
- Instrument accuracy of approximately ±3 mm
- Operating accuracy of approximately ±5 mm
- 10 GHz FMCW radar technology
- Continuous non-contact level measurement
The combination of radar technology and digital signal processing helps deliver dependable tank measurement performance.
Key Benefits of Honeywell Enraf EM540
- Improves Cargo Measurement Confidence – Accurate level information helps operators make better decisions during cargo handling and tank operations.
- Reduces Mechanical Wear – Non-contact measurement avoids the moving mechanical components associated with traditional contacting level instruments.
- Helps Minimise Measurement Downtime – Built-in diagnostics can assist engineers in identifying potential instrument or communication problems more efficiently.
- Supports Efficient Cargo Transfer – Reliable level information can help operators monitor loading, unloading and cargo-transfer activities more effectively.
- Suitable for Harsh Marine Conditions – Rugged construction and environmental protection support dependable operation in demanding vessel environments.
- Simplifies Preventive Maintenance – Self-monitoring and diagnostic functions can help service teams identify maintenance requirements before they become major operational problems.
- Supports Centralised Monitoring – Digital communication allows tank measurement information to be incorporated into compatible cargo and vessel monitoring systems.
- Helps Maintain Operational Accuracy – High-resolution radar measurement supports consistent monitoring of cargo tank levels.
- Long-Term Marine Serviceability – Robust construction and electronic diagnostics can contribute to dependable equipment operation over the service life of the installation.
Antenna Design and Fouling Detection
A reliable radar measurement system requires effective transmission and reception of the radar signal. The EM540 incorporates a planar antenna design, which is intended to minimise product build-up on the antenna surface.
The equipment also incorporates antenna fouling detection, helping identify conditions that could affect measurement performance.
Regular inspection of the radar antenna, tank connection and associated installation components remains important as part of preventive maintenance.
EM540 Digital Communication and System Integration
The EM540 supports two-way digital communication, allowing measurement data and diagnostic information to be exchanged with compatible vessel systems.
The gauge can be incorporated into marine automation architectures involving:
- Cargo monitoring systems
- Tank gauging systems
- Cargo control systems
- Vessel automation systems
- Remote monitoring systems
Correct communication configuration is essential to ensure that the radar gauge communicates reliably with the vessel’s receiving equipment.
Built-In Diagnostics and Radar Self-Test
One of the important technical advantages of the EM540 is its built-in self-monitoring and diagnostic functionality.
The equipment can perform automatic radar self-tests and provide diagnostic information that can assist service engineers in identifying abnormal operating conditions.
During maintenance, engineers can inspect:
- Radar measurement status
- Communication status
- Diagnostic indications
- Antenna condition
- Measurement stability
- Power supply
- Wiring and connections
- Configuration parameters
These diagnostic capabilities can help reduce troubleshooting time and support preventive maintenance programs.
Rugged Construction for Marine Environments
Marine tank gauging equipment must operate reliably under demanding environmental conditions. The EM540 features a 316L stainless-steel housing and is designed for harsh marine installations.
Key environmental characteristics include:
- IP66/IP67 protection
- Operating temperature approximately −40°C to +70°C
- Stainless-steel construction
- Suitable for demanding marine tank environments
- Product temperature capability up to approximately +250°C with appropriate mounting/configuration
Proper installation, grounding, cable termination and enclosure inspection are important for maintaining long-term equipment reliability.
