Precision Tank Measurement for Petroleum, Chemical & Marine Applications

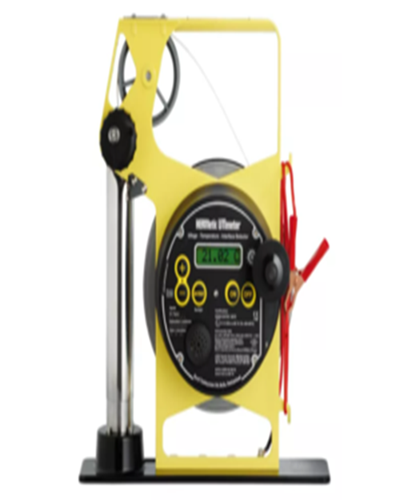

SMTS Marine Solutions LLC supplies the Honeywell HERMetic UTImeter Otex, a portable electronic tank measurement instrument engineered for accurate determination of ullage, temperature, and oil-water interface levels.
Designed for applications where reliable manual tank measurement is required, the UTImeter Otex combines several measurement functions in one compact instrument. Its portable design makes it suitable for tank terminals, refineries, storage facilities, marine operations, and other petroleum and chemical handling environments.
SMTS Marine Solutions LLC supplies Honeywell HERMetic UTImeter Otex for portable ullage, temperature and oil-water interface measurement in marine, petroleum, chemical and tank terminal applications
One Instrument. Multiple Tank Measurements.
Tank operators often need more than a simple liquid-level reading. Accurate knowledge of product level, temperature, water interface, and reference measurements is essential for cargo verification, inventory control, and operational decision-making.
The HERMetic UTImeter Otex brings these functions together in a single portable system, helping operators obtain consistent measurement data without using several separate instruments.The LCD display provides direct measurement information, while audible and visual indications assist the operator during the gauging procedure.
Measurement Functions
- Ullage measurement
- Liquid temperature measurement
- Oil-water interface detection
- Innage measurement
- Reference height measurement
- Datum plate detection
- Free-water level verification
Flexible Tape & Probe Configurations
The instrument can be configured according to the required tank application.
Available Tape Lengths
- 15 m / 50 ft
- 30 m / 100 ft
- 35 m / 115 ft
Probe Configurations
Standard Probe
A 1-inch sensing probe for general tank measurement applications.
Optional 2-Inch Load
Suitable for applications involving viscous products and datum plate detection requirements.
The appropriate configuration should be selected according to the tank arrangement and product being measured.
Built for Demanding Tank Environments

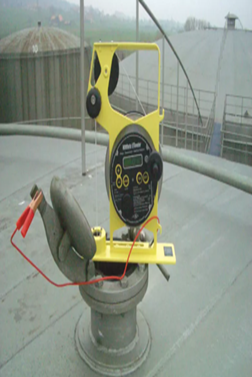

The UTImeter Otex is designed for use in industrial and hazardous-area applications where equipment reliability is essential.Unlike permanently installed tank gauging equipment, the UTImeter Otex can be transported between measurement points and deployed when required.
Operating Parameters
- Temperature measurement range: -40°C to +90°C
- Ambient operating temperature: -20°C to +50°C
- Temperature resolution: 0.01°C / 0.1°C

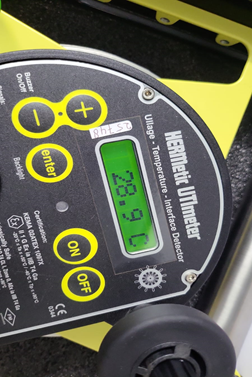

- Display: 8-character LCD
- Display illumination: Backlight
- Temperature units: °C / °F
- Power: Approved 9V battery operation
Advanced Electronic Tank Gauging
The UTImeter Otex uses an integrated sensing assembly combining electronic level detection with temperature and conductivity measurement.
The sensing arrangement incorporates:
- Ultrasonic liquid-level sensing
- RTD temperature measurement
- Conductivity detection
- Stainless-steel probe construction
- PEEK sensor head
This combination enables the operator to identify the required measurement point while simultaneously obtaining important cargo information.
Designed for Efficient Tank Inspection
The UTImeter Otex helps simplify manual tank measurement by combining several functions into one instrument.
Faster Measurement
Multiple tank parameters can be checked using the same portable device.
Repeatable Results
Electronic sensing technology helps provide consistent measurements during repeated inspections.
Simplified Maintenance
The modular construction allows selected components, including the measuring tape and sensor modules, to be replaced by the user according to applicable procedures.
Practical Field Operation
The portable design makes the instrument convenient for use across multiple tanks and facilities.
Supporting Custody & Inventory Operations
A reliable measuring instrument is only part of an effective tank measurement system. Correct product selection, suitable probe configuration, proper handling, periodic inspection, and appropriate operating procedures all contribute to dependable measurement results.
The UTImeter Otex can support operators during:
- Cargo quantity verification
- Inventory monitoring
- Tank inspection
- Free-water checks
- Temperature correction activities
- Cargo transfer operations
- Tank calibration verification
For custody-transfer applications, the instrument should always be used in accordance with the applicable measurement procedure, vessel or terminal requirements, and relevant standards.
Why Source Your UTImeter Otex from SMTS Marine Solutions LLC?
SMTS Marine Solutions LLC provides marine instrumentation and tank measurement solutions for ship owners, ship managers, terminals, offshore operators, and industrial customers.
Our support can include:
- Honeywell equipment supply
- Genuine spare parts
- Technical product assistance
- Application guidance
- Troubleshooting support
- Inspection assistance
- Maintenance support
- Calibration-related assistance
- Replacement and upgrade solutions
- Technical documentation support
- Marine logistics and delivery
We focus on providing practical equipment solutions backed by responsive technical support.
Request Your UTImeter Otex Solution
Need Accurate Portable Tank Measurement?
Whether you require a Honeywell HERMetic UTImeter Otex, replacement components, technical information, or support for an existing unit, SMTS Marine Solutions LLC can assist with your tank gauging requirements.
SMTS MARINE SOLUTIONS LLC
Marine Instrumentation | Tank Gauging | Cargo Measurement | Technical Support
Contact our team for pricing, availability, technical specifications, spare parts, and service support.
