SMTS Marine Solutions LLC provides Rivertrace SMART BILGE 15ppm Oil Content Monitor equipment, technical support, installation assistance, calibration support, troubleshooting, maintenance, retrofit solutions, and genuine spare parts for marine and offshore applications.
The SMART BILGE 15ppm Oil Content Monitor is an advanced bilge water monitoring system designed to continuously monitor oil concentration in water discharged from onboard Oily Water Separator (OWS) systems. With advanced Detector Array Technology, SMART BILGE provides reliable detection of different oil types and supports effective marine environmental monitoring.
Advanced Bilge Water Monitoring Solution by SMTS Marine Solutions LLC
Key Features
- Advanced Detector Array Technology – Detects HFO, diesel, and emulsions for reliable multi-oil monitoring.
- Real-Time Oil Measurement – Continuously monitors oil concentration in bilge water during discharge.

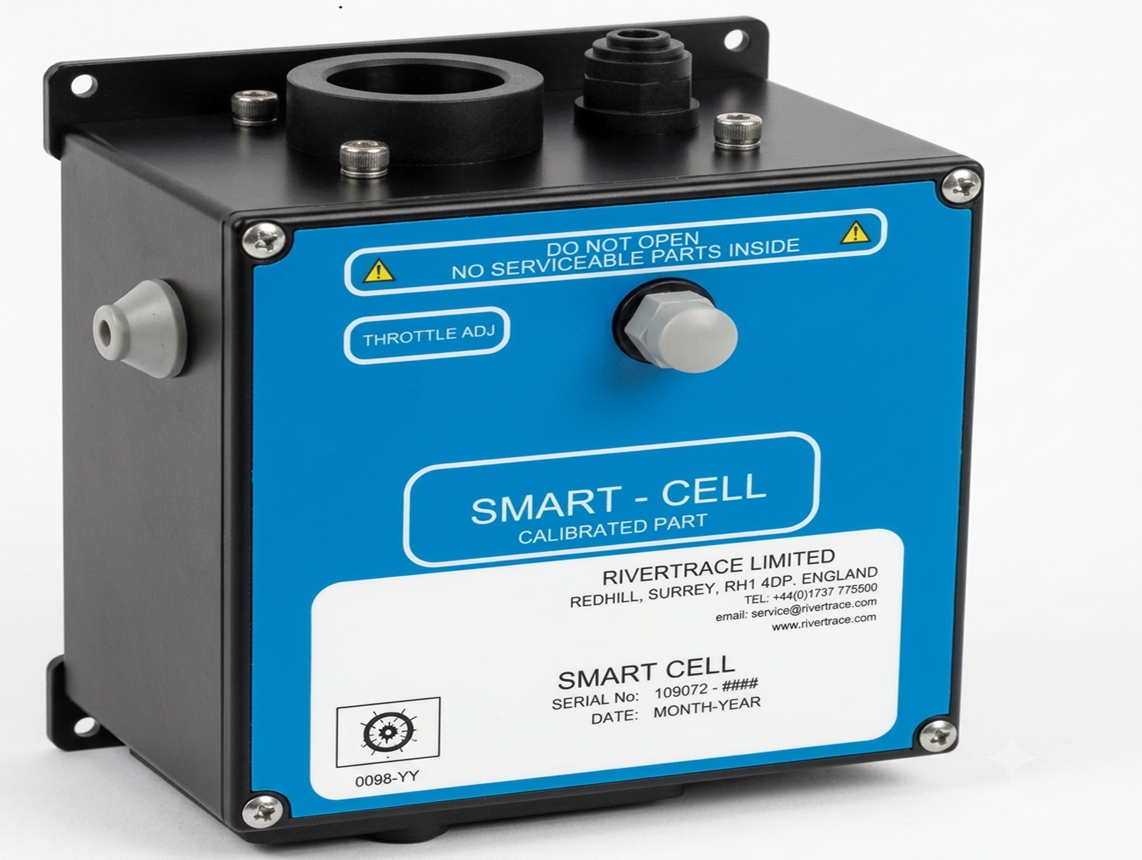

- SMART CELL Technology – Dedicated measuring cell designed for accurate and consistent oil-content monitoring.
- 15ppm Monitoring – Provides continuous monitoring to support the required bilge water discharge limit.
- Easy Maintenance – Manual cleaning and optional automatic cell-cleaning solutions help reduce maintenance requirements.
- Calibration Verification – Supports calibration checks using suitable calibrated cells and test equipment.
- Flow Monitoring Option – Optional flow switch helps confirm water flow through the measuring cell.
- Digital Integration – Optional GPS, flow measurement, and digital connectivity support enhanced monitoring and recordkeeping.
Key Benefits
- Reliable Bilge Monitoring – Provides continuous visibility of oil concentration in treated bilge water.
- Environmental Protection – Helps reduce the risk of excessive oil discharge into the marine environment.
- Regulatory Support – Supports monitoring requirements associated with IMO MEPC.107(49).
- Multi-Oil Detection – Handles different oil types without requiring frequent recalibration between oil types.
- Reduced Maintenance – Cleaning options help maintain measuring-cell performance and reduce fouling.
- Improved Operational Safety – Continuous monitoring helps operators identify abnormal oil concentrations during discharge.
- Simplified Service – SMART CELL replacement and calibration verification can simplify routine maintenance.
- Flexible Integration – Can be configured with flow monitoring, GPS, digital connectivity, and other vessel monitoring systems
How Does SMART BILGE Work?
The SMART CELL uses advanced Detector Array Technology to analyze oil contamination in bilge water. The technology is designed to detect different oil characteristics, including Heavy Fuel Oil (HFO), diesel, and emulsions, without requiring recalibration between different oil types.
During operation, bilge water passes through the measuring cell while the system continuously monitors the oil concentration. This real-time measurement helps operators identify changes in oil content and supports controlled and compliant bilge water discharge.
SMART BILGE 15ppm Monitoring & IMO MEPC.107(49)
The 15ppm Oil Content Monitor is an important part of a vessel’s oily water management system. IMO MEPC.107(49) establishes requirements associated with oil filtering equipment and oil content monitoring arrangements used for machinery-space bilge water.
The Rivertrace SMART BILGE provides continuous oil-content monitoring to support vessel environmental management and bilge water discharge procedures.
SMART BILGE Flexible Monitoring Solutions
SMART BILGE+ 5ppm Version
The SMART BILGE+ is available in a 5ppm alarm configuration for applications requiring additional monitoring capability, including selected DNV Clean Design applications.
Automatic Cell Cleaning
An optional pneumatic autoclean system helps keep the measuring cell clean and reduces manual cleaning requirements.
Flow Switch Protection
The optional flow switch monitors flow through the measuring cell and can provide additional protection against inappropriate discharge when flow is interrupted.
GPS Integration
GPS connectivity can support recording of discharge-event locations and integration with digital vessel records.
Overboard Flow Meter
An optional flow meter can record the total volume of bilge water discharged, providing additional discharge information.
SMART CONNECT Integration
Digital connectivity options can support the transfer of bilge discharge information for electronic Oil Record Book (E-ORB) applications.
Hazardous Area Installation
Explosion-protected cabinet configurations are available for selected hazardous-area applications, including Zone 1 and Zone 2 installations.
SMART BILGE Applications
The Rivertrace SMART BILGE 15ppm Oil Content Monitor is suitable for:
- Oily Water Separator Systems
- Bilge Water Monitoring
- 15ppm Oil Content Monitoring
- Bilge Alarm Systems
- Marine Environmental Monitoring
- Bilge Water Discharge Monitoring
- Deck Drain Discharge Monitoring
- Rig Slop Tank Discharge
- Air Cooler Drain Applications
- Offshore Environmental Monitoring
- DNV Clean Design Applications
- Marine Pollution Prevention Systems
Rivertrace SMART BILGE – Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rivertrace |
| Product | SMART BILGE 15ppm Oil Content Monitor |
| Measuring Technology | Detector Array Technology |
| Oil Detection | HFO, Diesel & Emulsions |
| Measuring Component | SMART CELL |
| Application | Bilge Water / Oily Water Separator |
| Monitoring | Continuous Real-Time Oil Content |
| Compliance | IMO MEPC.107(49) |
| Optional Features | Autoclean, Flow Switch, GPS, Flow Meter & Digital Connectivity |
| Installation Options | Standard & Hazardous Area Configurations |
Why Choose SMTS Marine Solutions LLC?
SMTS Marine Solutions LLC specializes in marine automation, instrumentation, environmental monitoring, oily water separator systems, and vessel technical services.
- Experienced Marine Technical Team
- We specialize in marine environmental compliance systems, marine automation, and onboard vessel support services.
- Worldwide Vessel Support
- Our engineers provide global onboard attendance, troubleshooting, calibration, inspection, and technical assistance services.
- Fast & Reliable Service
- We deliver prompt marine technical solutions to minimize vessel downtime and improve operational reliability.
- Complete Marine Support Solutions
For professional support regarding Rivertrace SMART BILGE 15ppm Oil Content Monitor Supply, calibration services, troubleshooting, annual inspections, retrofit solutions, and spare parts supply, contact:
Your trusted marine partner for environmental compliance systems, vessel automation solutions, and professional marine technical support worldwide.
