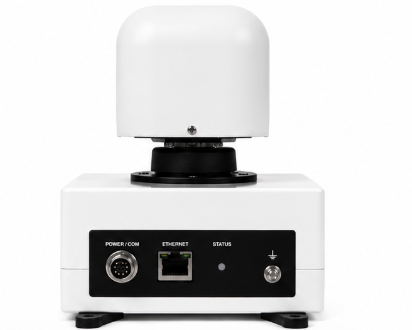

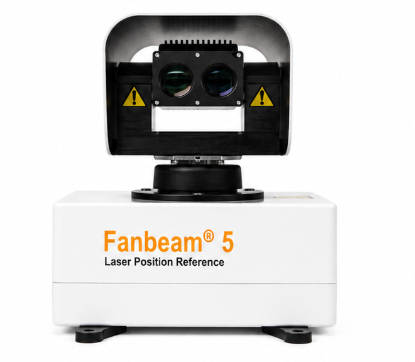

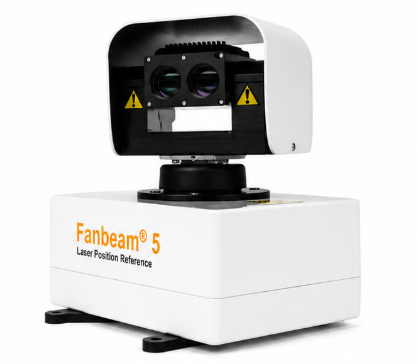

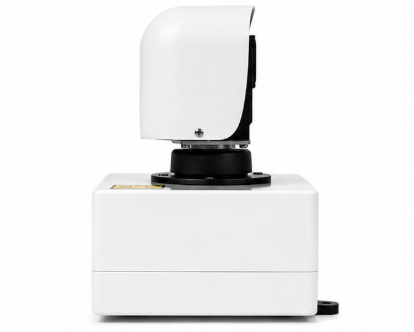

The Fanbeam 5 Dynamic Positioning Sensor is a high-precision laser-based Position Reference System (PRS) designed for offshore and marine Dynamic Positioning (DP) operations. Utilizing advanced Time-of-Flight laser technology, Fanbeam 5 provides accurate vessel positioning, reliable station keeping, and seamless integration with major DP systems.
SMTS MARINE SOLUTIONS LLC offers complete solutions for Fanbeam 5 including supply, installation, calibration, repair, inspection, troubleshooting, spare parts, rental support, and worldwide technical services.
Reliable Laser Position Reference Solution by SMTS MARINE SOLUTIONS LLC
What is Fanbeam 5 Dynamic Positioning Sensor?
The Fanbeam 5 is a laser position reference system used by Dynamic Positioning Operators (DPOs) to determine a vessel’s position relative to offshore structures, platforms, rigs, and nearby vessels.
The system transmits invisible laser pulses toward passive reflectors and measures the return signal to calculate precise range and bearing information. This positioning data is continuously supplied to the vessel’s Dynamic Positioning system for accurate thruster control and station keeping.
This positioning data is then transmitted directly to the vessel’s DP control system, enabling precise thruster adjustments and maintaining the vessel’s desired position without manual intervention.
How Fanbeam 5 Works
Laser Position Measurement
- Emits semiconductor laser pulses toward a target reflector.
- Measures return signal using Time-of-Flight technology.
- Calculates accurate range and bearing data.
Position Reference Processing
- Processes positioning information in real time.
- Supplies continuous data to the DP control system.
- Supports precise vessel positioning and maneuvering.
Intelligent Signal Filtering
- Automatically rejects false targets and unwanted reflections.
- Maintains stable performance in challenging offshore environments.
Key Features
Advanced Time-of-Flight Laser Technology
Highly accurate laser-based position reference measurements.
High Accuracy Positioning
Reliable range and bearing calculations for offshore station keeping.
Intelligent False Target Rejection
Automatic filtering of reflections caused by personnel, equipment, or environmental interference.
User-Friendly DPO Interface
- Fast target acquisition
- Adjustable laser tilt
- Real-time status monitoring
- Automated filtering functions
- Pre-configured operational settings
Rugged Offshore Design
Engineered for continuous operation in harsh marine and offshore conditions.
Easy Installation
Compact design enables rapid vessel mobilization and deployment.
Technical Specifications
Product Overview
| Specification | Details |
|---|---|
| Model | Fanbeam 5 |
| Technology | Time-of-Flight Laser Position Reference System |
| Laser Source | Semiconductor Laser Diode |
| Wavelength | 905 nm |
| Repetition Rate | 7.5 kHz |
| Beam Divergence | Vertical 18° / Horizontal 2.5 mrad |
| Laser Classification | Class 1 |
| Maximum Range | Up to 2000 m |
| Controller Software | Fanbeam Controller 4.0 |
| Primary Function | Dynamic Positioning Reference |
| Industry Applications | Offshore, Marine & Industrial |
Benefits of Fanbeam 5 Dynamic Positioning Sensor
Enhanced Vessel Safety
Provides highly reliable positional information that assists in preventing vessel drift and maintaining safe operational distances.
Improved DP Performance
Accurate positioning data allows DP systems to optimize thruster control and improve vessel stability.
Reliable Position Reference Redundancy
Serves as an independent positioning source alongside DGPS, GNSS, and other DP sensors.
Increased Operational Efficiency
Supports uninterrupted offshore operations by providing stable and continuous positioning data.
Reduced Downtime
The robust design and intelligent diagnostics minimize system failures and maintenance interruptions.
Cost-Effective Ownership
Long service life, low maintenance requirements, and durable passive reflector technology contribute to lower operational costs.
Services by SMTS MARINE SOLUTIONS LLC
SMTS MARINE SOLUTIONS LLC offers complete lifecycle support for Fanbeam 5 Dynamic Positioning Sensors, including:
Supply & Procurement
New system supply and project support.
Installation & Commissioning
Professional onboard integration and operational testing.
Calibration Services
Performance verification and accuracy validation.
Inspection & Preventive Maintenance
Scheduled maintenance programs for reliable operation.
Repair & Troubleshooting
Rapid fault diagnosis and corrective maintenance.
Software Support
Fanbeam Controller configuration and optimization.
Spare Parts Supply
Genuine replacement components and accessories.
Why Choose SMTS MARINE SOLUTIONS LLC?
Marine Automation Expertise
Specialists in Dynamic Positioning Systems, Marine Automation, Offshore Instrumentation, Gas Detection Systems, and Marine Safety Equipment.
Experienced Technical Team
Qualified engineers providing installation, calibration, repair, and troubleshooting services worldwide.
Global Offshore Support
Fast-response technical assistance for shipowners, marine contractors, offshore operators, and industrial clients.
For Fanbeam 5 Dynamic Positioning Sensor supply, installation, calibration, inspection, repair, troubleshooting, spare parts, rental support, and offshore technical services, contact SMTS MARINE SOLUTIONS LLC.
SMTS MARINE SOLUTIONS LLC – Your trusted partner for Dynamic Positioning Sensors, Marine Automation Systems, Offshore Positioning Equipment, and Marine Technical Services Worldwide.
