The MDL Fanbeam® 4.2 and 5 Laser Rangefinders are industry-leading laser-based Position Reference Systems (PRS) designed to provide precise vessel positioning data for Dynamic Positioning (DP) operations in offshore and marine environments. Developed using advanced laser ranging technology, both systems deliver accurate range and bearing measurements to support vessel station keeping, offshore construction, subsea operations, drilling support, and renewable energy projects.
Advanced Laser Position Reference Systems for Dynamic Positioning and Offshore Marine Operations by SMTS Marine Solutions LLC
Overview of Fanbeam Laser Rangefinders
Fanbeam laser rangefinders are designed to provide an independent position reference source for Dynamic Positioning systems by measuring the vessel’s position relative to a fixed target or offshore structure.
Using laser pulse technology, the system continuously measures the distance and bearing to specially designed passive reflectors mounted on offshore platforms, wind turbines, vessels, or fixed marine structures. The measured data is processed and transmitted directly to the vessel’s DP system, enabling accurate thruster control and precise station keeping.
These systems are commonly used as an alternative or complementary reference to GNSS, DGPS, and other positioning technologies, providing additional redundancy and operational safety during critical offshore operations.
The technology operates by transmitting laser pulses toward passive reflectors mounted on offshore structures, platforms, vessels, wind turbines, or fixed marine installations.
How Fanbeam Laser Rangefinders Work
Laser Pulse Transmission
The system emits invisible laser pulses toward a passive reflector positioned on a fixed offshore structure or target.
Time-of-Flight Measurement
The return signal is analyzed to determine the exact travel time of the laser pulse, allowing the system to calculate the precise distance to the target.
Bearing Calculation
Using advanced optics and scanning technology, the system determines the relative bearing between the vessel and the target reflector.
Position Reference Output
The measured range and bearing information are transmitted directly to the vessel’s Dynamic Positioning system, providing real-time vessel position reference data.

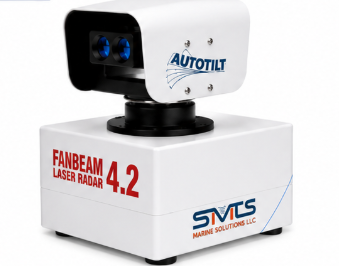

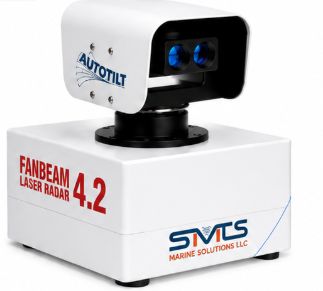

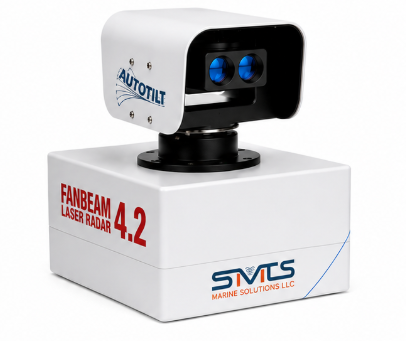

MDL Fanbeam® 4.2 Laser Rangefinder
Proven Dynamic Positioning Reference Solution
The Fanbeam 4.2 is a highly reliable laser positioning system widely installed on offshore support vessels, construction vessels, and drilling support units. The system provides accurate range and bearing measurements for Dynamic Positioning applications and has earned a strong reputation for dependable performance in demanding offshore environments.
Key Features
- Laser-based position reference technology
- Continuous range and bearing measurement
- Automatic target acquisition
- High-speed position updates
- Compact marine-grade design
- Reliable operation in offshore conditions
- Integration with major DP systems
- Adjustable tilt mechanism
- Real-time target tracking
- False target filtering capabilities

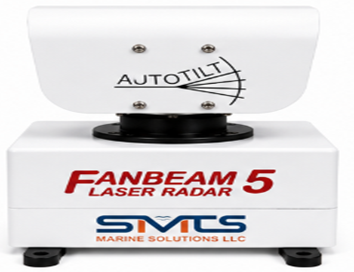

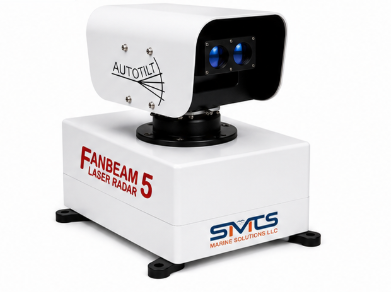

MDL Fanbeam® 5 Laser Rangefinder
Next-Generation Dynamic Positioning Position Reference System
The Fanbeam 5 represents the latest generation of laser positioning technology designed specifically for modern offshore operations. Building upon the success of previous Fanbeam models, the system incorporates improved hardware, advanced signal processing, enhanced software capabilities, and superior operational reliability.
Fanbeam 5 utilizes sophisticated Time-of-Flight laser technology to provide highly accurate positional information even in complex offshore environments where reliable station keeping is critical.
Key Features
- Advanced Time-of-Flight laser technology
- Fanbeam Controller 4.0 software
- Intelligent false target rejection
- Fast target acquisition
- Improved tracking performance
- High update rate positioning data
- Enhanced operator interface
- Marine-grade rugged construction
- Seamless DP system integration
- Extended operational range
Benefits of Fanbeam Position Reference Systems
High Positioning Accuracy
Provides precise vessel positioning information essential for offshore operations.
Reliable Station Keeping
Supports stable vessel positioning during critical marine activities.
Independent Position Reference
Acts as a redundant positioning source alongside GNSS and DGPS systems.
Enhanced Operational Safety
Improves vessel control and reduces positioning risks.
Fast Dynamic Response
Provides rapid position updates for improved DP performance.
Low Maintenance Requirements
Utilizes durable passive reflectors with minimal maintenance needs.
Services by SMTS MARINE SOLUTIONS LLC
SMTS MARINE SOLUTIONS LLC provides complete support services for MDL Fanbeam® 4.2 and Fanbeam® 5 Laser Rangefinders, ensuring reliable performance and accurate positioning for offshore Dynamic Positioning operations.
Our Services Include:
- Supply of Fanbeam® 4.2 & Fanbeam® 5 Systems
- Installation & Commissioning
- Calibration & Performance Verification
- Inspection & Preventive Maintenance
- Troubleshooting & Diagnostics
- Repair & Refurbishment Services
- Software Configuration & Support
- Spare Parts & Reflector Supply
- Rental Solutions
- Offshore Technical Assistance
- Worldwide Marine Service Support
Our experienced marine engineers deliver professional support to offshore vessels, marine contractors, shipowners, and offshore operators worldwide, ensuring maximum system reliability and operational efficiency.
Why Choose SMTS MARINE SOLUTIONS LLC?
SMTS MARINE SOLUTIONS LLC is a trusted provider of marine automation, Dynamic Positioning equipment, offshore instrumentation, navigation systems, gas detection systems, and marine safety technologies.
Our experienced engineers deliver:
- Professional installation services
- Factory-standard calibration support
- Expert troubleshooting and repairs
- Offshore commissioning assistance
- Global technical support
- Fast spare parts supply
- Long-term maintenance solutions
We are committed to ensuring the reliability, accuracy, and operational performance of critical offshore positioning systems worldwide.
For MDL Fanbeam® 4.2 and Fanbeam® 5 Laser Rangefinders, including supply, installation, calibration, inspection, maintenance, repair services, spare parts, rental solutions, and offshore technical support, contact SMTS MARINE SOLUTIONS LLC.
Your trusted partner for Dynamic Positioning Systems, Laser Position Reference Technology, Marine Automation Solutions, and Offshore Technical Services Worldwide.
