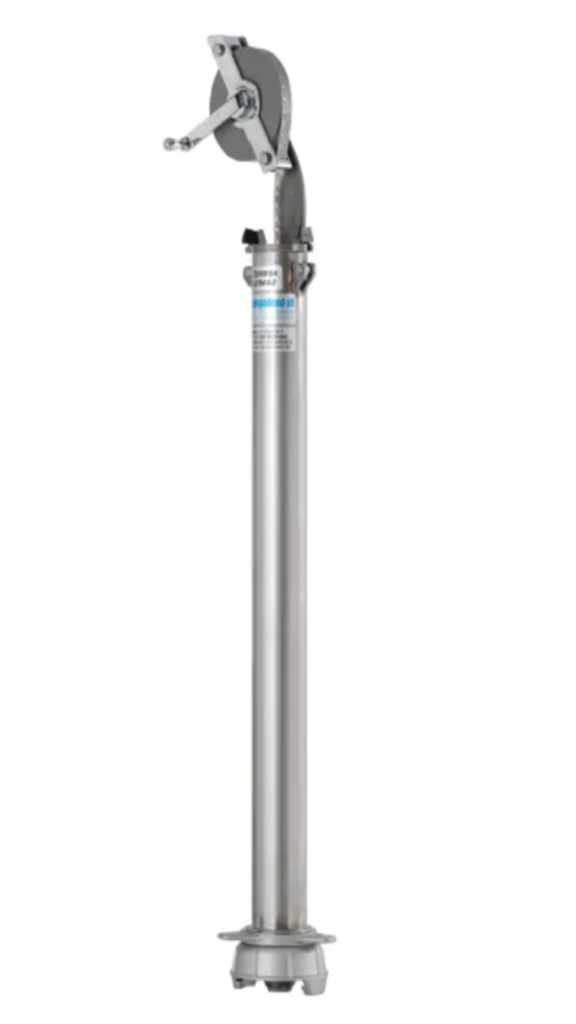

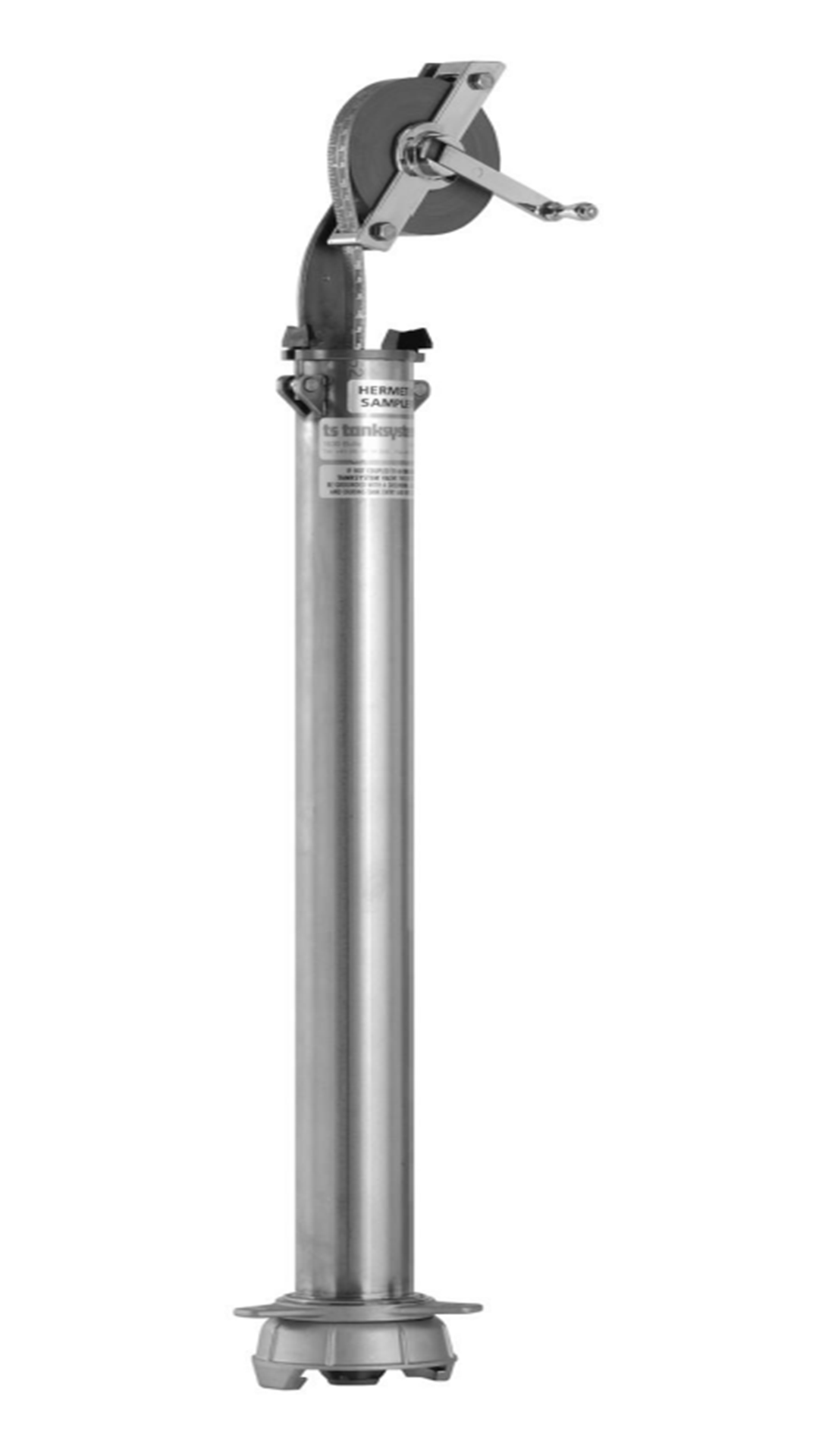

The Honeywell HERMetic Sampler A-2 is a portable restricted sampling device designed for efficient liquid sampling operations on marine vessels, tankers, terminals, refineries, and storage tanks. Developed for restricted or open sampling applications where controlled vapor release is permitted, the sampler provides a practical solution for collecting representative samples of crude oil, hydrocarbons, and other liquid cargoes.
The HERMetic Sampler A-2 is installed onto compatible 2-inch HERMetic compact vapor control valves using a quick-connect coupling system. The sampling bottle is lowered into the tank using a graduated tape and collects liquid through vertical movement within the tank. Its durable construction, interchangeable sampling bottles, and straightforward operating design make it suitable for cargo verification, custody transfer, inventory control, laboratory analysis, and quality control applications.
HERMetic Sampler A-2 – Reliable Restricted Sampling for Marine & Petroleum Cargo
Key Features:
Suitable for restricted/open sampling
Provides an efficient solution for applications where vapor release is operationally acceptable.Compatible with 2-inch HERMetic compact valves
Allows secure installation using a quick-connect coupling system.Quick-connect coupling

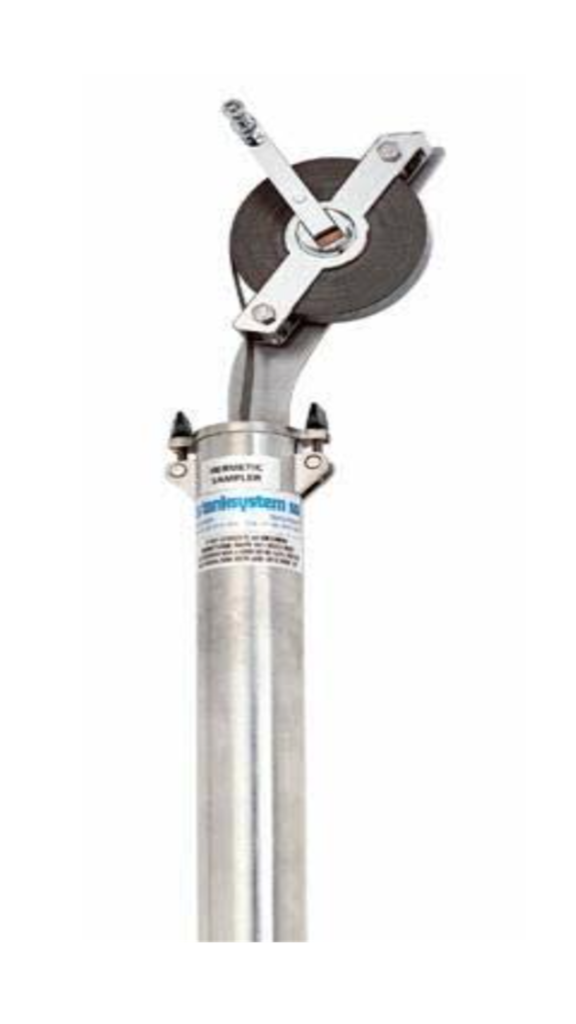

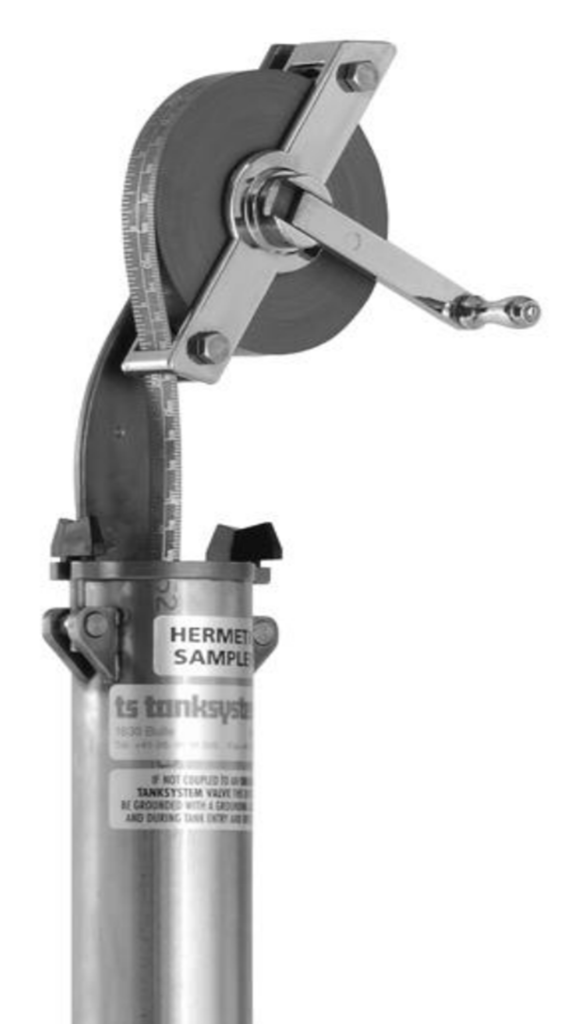

Simplifies installation and removal of the sampler.Graduated sampling tape
Provides accurate indication of sampling height inside the tank.Viewing window
Allows operators to monitor the sampling bottle position during operation.Vertical sampling operation
The bottle collects liquid as it moves through the tank contents.Interchangeable sampling bottles
Allows different bottle configurations to be used for specific sampling requirements.
Key Benefits:
Efficient restricted sampling
Provides a practical method for collecting liquid samples where restricted or open sampling is permitted.Representative sample collection
Helps obtain reliable samples for laboratory analysis, cargo verification, and quality control.Suitable for crude oil and hydrocarbons
Designed for sampling petroleum products and liquid cargoes with varying viscosities.Easy installation
Quick-connect coupling allows convenient mounting on compatible HERMetic valves.Easy bottle replacement
Sampling bottles can be removed and exchanged efficiently after sampling.Reduced maintenance requirements
Robust components support reliable operation and long service life.Suitable for marine and offshore operations
Designed for use across tanker, terminal, refinery, and offshore applications.
Sampling applications include:
Zone sampling: Collecting samples from specific levels or zones within a tank to assess product consistency and composition.
Spot sampling: Taking a sample from a single, defined point in the tank for targeted analysis.
Running sampling: Collecting a continuous sample while moving the sampler through the liquid column to obtain a representative product sample.
Bottom sampling: Gathering samples from the lowest point of a tank to identify sediment, water, or contamination.
Hydrocarbon sampling: Sampling petroleum-based products to verify their properties, quality, and compliance with specifications.
Restricted liquid sampling: Safely collecting samples from liquids that require controlled or limited-access sampling procedures.
Construction Materials
Stainless Steel AISI 316
Provides corrosion resistance, mechanical strength, and durability in marine environments.Brass
Provides mechanical durability and suitable resistance for selected components.PTFE
Provides excellent chemical resistance when handling petroleum and other liquids.PVDF
Provides chemical resistance and durability in demanding sampling applications.FKM Gaskets
Provide reliable sealing and resistance to petroleum products and various chemicals.Rilsan-Coated Aluminum Components
Provides lightweight construction with additional surface protection and corrosion resistance.
International Standards & Certifications
ATEX: II 1 G c IIB T6
IMO Standards
SOLAS Compliance
MARPOL Compliance
Applicable API Standards
Applicable ISO Standards
OCIMF Standards
Suitable for applicable hazardous marine environments and Zone 0 classified areas
Operating Characteristics
Sampling Type: Restricted / Open
Tank Connection: 2-inch HERMetic compact valve
Sampling Depth Measurement: Graduated tape and viewing window
Maximum Tank Overpressure: 0.3 bar
Bottle Capacity: Approximately 0.5 L
Application Environment: Marine, offshore, petroleum, refinery, and terminal operations
